Function generator

FG320

Compact tester of vibration, displacement
and speed monitoring systems

Everything you need for Machine Monitoring Systems testing

i
The tester FG320 represents unique device for configuring and commissioning of rotating machines monitoring systems. The tester is able to simulate all types of commonly used sensors of vibration, displacement, eccentricity and speed. Very compact and light device is controlled by common PC/laptop with Windows operating system.

Tester FG320 is the ideal device for commissioning, calibration, validating, functional tests and troubleshooting.
description

Datasheet

system_update_alt

Actual software

DC output

Voltage scale

± 22V

Current scale

0...24 mA

Minimum signal increment

10 mV / 10 µA

AC output

Frequency scale

0-20 kHz

Signal scale

up to 4 V / 12 mA

Minimum signal increment

0,1 mV / 1 µA

Selected functions

Configurable
Ramp

Speed
Output

User-defined
Signal

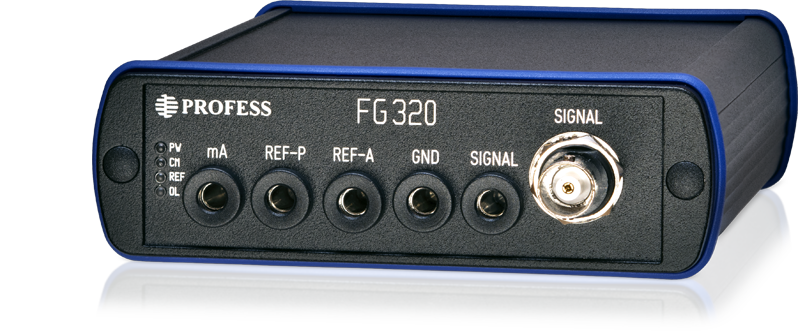

Compact design

The tester fits into every baggage and therefore is suitable especially for long travels with limited baggage weight – it weighs only 300 grams / 10,6 ounces! There is no additional accesories necessary except laptop/computer and standard USB/USB-B cable.

Take a look at FG320 in the 360° picture.

Easy setting

The configuration tool is a special, user-friendly and available software – FG Programmer. Using this program, it is possible to easily configure user signals. There is also a database of vibration sensors, setting of user-defined ramp or display the output signal. The program is continuously developed and the update is automatic.

Versatility

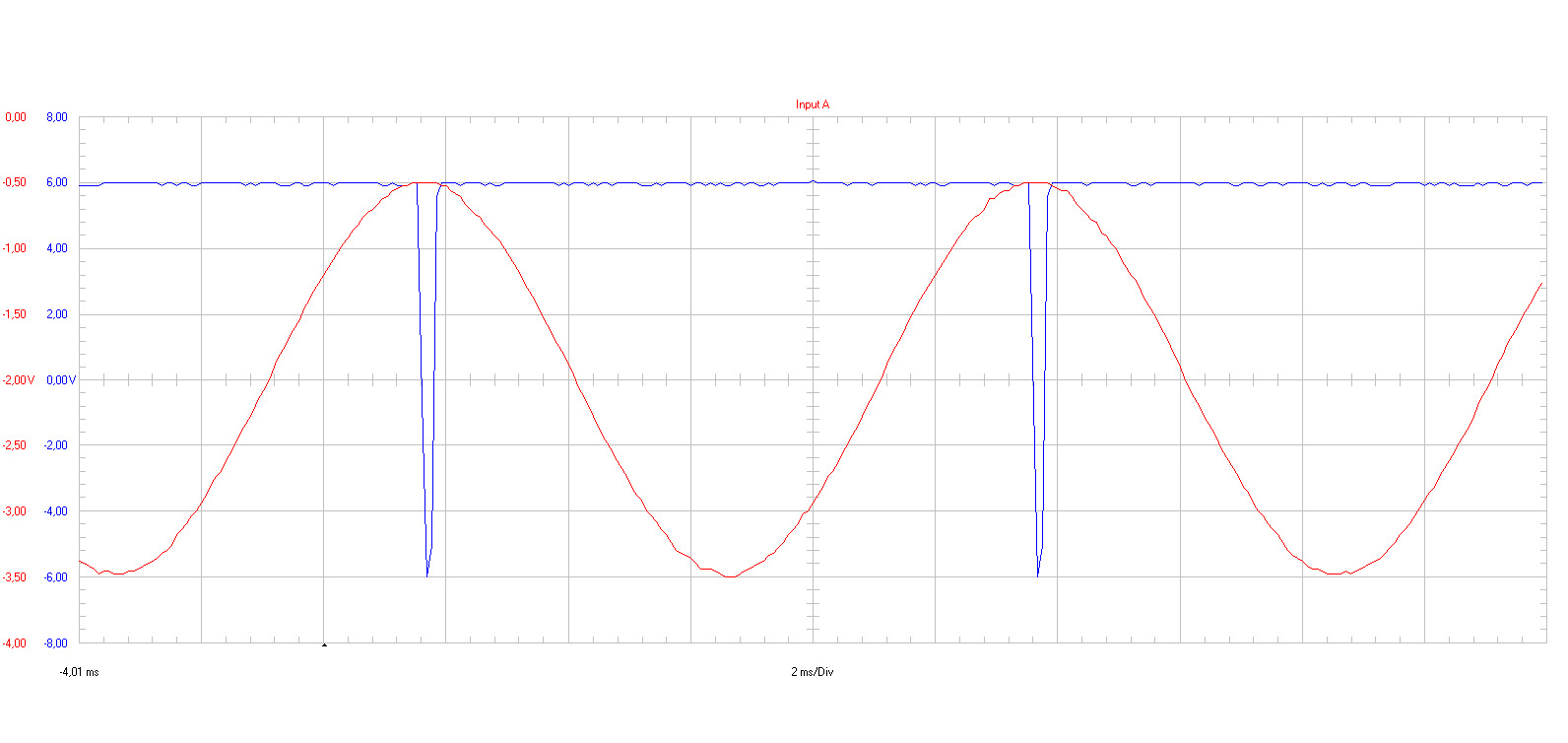

The tester serves primarily as a simulator of voltage or current vibration signals (output of machine monitoring systems sensors). For the verification of diagnostic signals, the tester contains the Reference pulse output. For current loop verification, there is an unified current output available. Overspeed protection systems could be verified by three-channel synchronized speed output.

Freedom of choice

Within the physical abilities of the tester, it’s possible to select from standard functions (sin, triangle, saw, square) and modify their phase shift, frequency, offset etc. The alternating component could be switched off entirely. User-defined signal could be loaded into the tester. There is a configurable ramp function for the purpose of simulating of the speed of rotating machines. Try out which other functions our tester provides!

Distribution

PROFESS, spol. s r.o.
Květná 5, 326 00 Plzeň

tel. +420 377 454 411
fax +420 377 240 472
email: mms@profess.cz
web: www.profess.cz

FG320 is supplied worldwide
